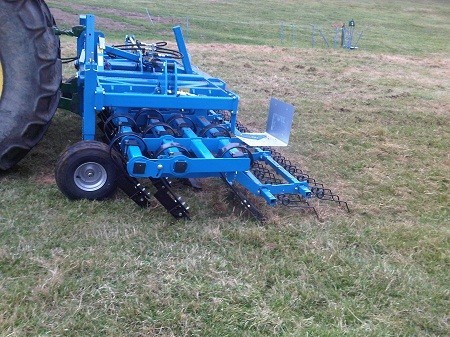

Carre Prairial Singlepass 3m (Meadow Preperation)
An evolution of the chain harrow/grass harrow, the Carre Prairial Singlepass facilitates meadow regeneration, scarification, molehill removal, cow dung and moss removal.
USE
- •Meadow regeneration
- scarification
- molehill removal
- cow dung and
- moss removal.
- • Cutter working depth:up to 8cm.
GENERAL CHARACTERISTICS:
The PRAIRIAL’S original design
provides great operating stability at
high speed (up to 12 km/h).
• 3-point attachment by pins,Categories Nos.2/3
• 100x8 tubular frame 120x60x8 and
200x100x5
• 4 knife-holding and levelling blade holding
bars 70x5mm.
• Reversible knives with a pitch of 200
or 250mmon 2 bars at the front.
• The knives’operating depth is adjustable
bymeans of a screwed push bar.
• Staggered levelling blades on 2 fixed bars
at the rear.
• The knives and blades are fixed
on flexible blades.
• 8mmdia. rootrake harrow on 2 rows at
the rear with adjustable aggressiveness.
• Hydraulic folding from4.50m:
• Transport width:
- Fixedmodel:3m
- Foldingmodels:2.50m
• Pair of tyred depth gauge wheels
18 x 8.50-8 (460 dia. x 220)
Safety:
• Controlled fall-prevention and double flaps on the jacks of the folding models.
• 3 automatically locking stands.
• Transport width 2.50mon the folding models.
• Access gangway on the SEMLOC sower.
• Signalling and lighting included on the folding models
Solidity:
• 3rd point pin No.2/3mounted on steel plate 20mmthick.
• Compact, single-piece frame, fully welded and including attachment
to avoid taking up play.
• Polyamide slides and rings to avoid steel/steel contact by the moving parts.
• The fitting of levelling blades on flat spring tines 80x12 provides resistance
to significant efforts.
• Optional fitting of carbide knives.
Comfort:
• Screwed push bar adjustment of the depth control knives.
• Handle screw systemwith rule for adjusting the depth control wheels.
• Sector pin adjustment of the depth control harrow.
• Reversible knives with significant wear range.
• Clip pins provide rapid harrow tines changing.
Efficiency:
• Oscillation of the extensions on the folding models to adapt to ground irregularities.
• Choice of knife pitch: 200 or 250mm
• Crenellated levelling blade for maximum aggressiveness and angle of inclination
providing perfect operating stability. Staggered arrangement to improve stone evacuation.
• Can be combined with the SARCLERSE weeding harrow by adding rear lifting.
The rootrake harrow is removed in this case.
£POA
