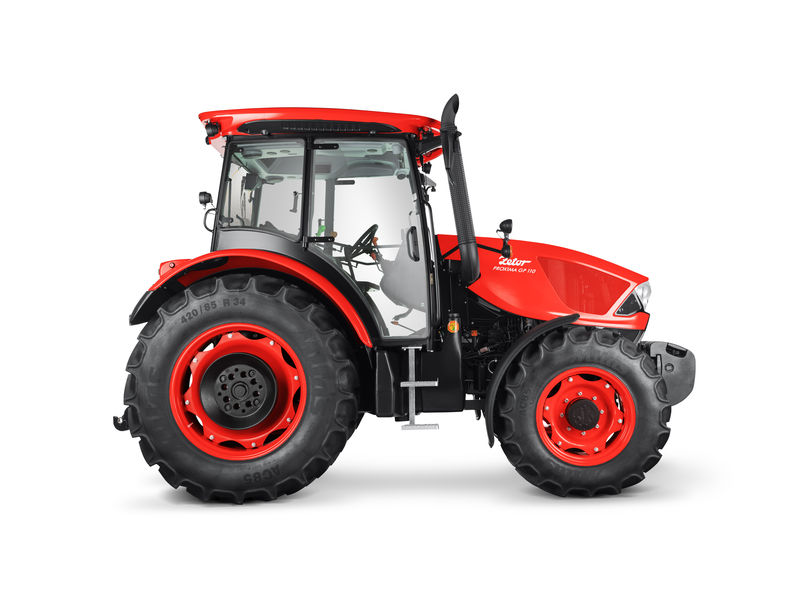

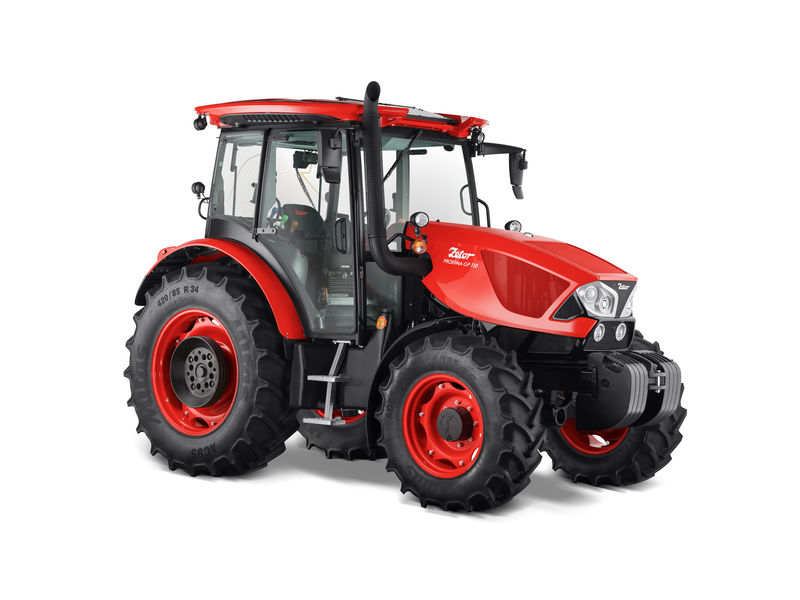

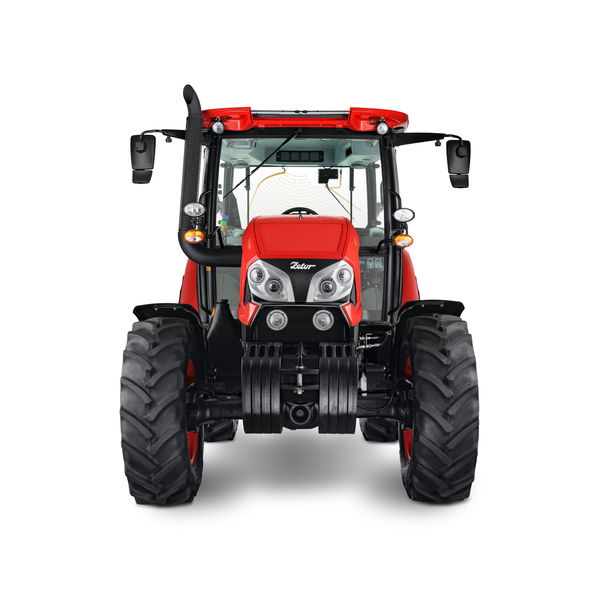

Zetor Proxima GP
The Proxima GP Range boasts both power and manoeuvrability. Over and above the Proxima range, Proxima GP tractors include 2 speed powershift. All Proxima GP tractors are backed by a 2 year or 2400 hours manufacturer's warranty on all major mechanical components.
Proxima GP models have a 40kph, 16 forward, 16 reverse gearbox with a manual shuttle and 2 stage powershift.
3 models
- Proxima GP 90 87hp - available in 4WD only
- Proxima GP 100 96hp - available in 4WD only
- Proxima GP 110 107hp - available in 4WD only
Engine
- Proven by generations of users
- ZETOR TRACTORS a.s. manufactures the largest number of compression ignition engines in the Czech Republic. This manufacturing tradition dates back to the 1920s.
- Zetor tractors do not use power boost, i.e. power available only under certain conditions. Full power is always available regardless of load.
- Environmentally friendly operation - to meet the most stringent emission limits, our tractors have a diesel particulate filter (DPR).
- In-house development and manufacture - guaranteed precise workmanship using quality materials.
- Low consumption - ensures a very low consumption of operating fluids.
- Mechanical injection pump - reliable and trouble-free operation, long service life.
- Two balance shafts - reduce vibrations and make the engine run more smoothly.
- Pressurized oil-cooled piston crowns - increase combustion efficiency and prolong engine life.
- Optional coolant heater - reduces warm-up time, thus saving fuel.
- Glow plug in every cylinder (direct combustion engine pre-heating) – guarantees reliable starting at low temperatures.
- The exceptional popularity of Zetor engines is based on low fuel consumption, high reliability and simple design – these reward the customer not only with low purchase costs, but also low operating costs and great reliability. The 16-valve engines obtained one of the best evaluations in a stringent test carried out by the German Agricultural Association (DLG). Tractors with these engines therefore rank among the most economical in the market.
Gearbox
- A solution for everyone
- In-house production - control and enforcement of high quality standards.
- Service life - high-quality and durable materials ensure long service life.
- Variability of the range - solution tailored to customer’s needs.
- Gear ratio - optimizes power to weight ratio.
- Comfort - simple and comfortable shifting.
- Length - wheelbase length varies depending on model.
- PTO ground speed - offered as a standard.
- Proxima GP is an option for customers seeking a more modern design, greater power and comfort. This version contains 16/16 speeds with a twostage torque multiplier.
Hydraulics
- Reliable control at every turn
- Zetor was the first to offer the HITCHTRONIC function – a subsequent winner of many awards.
- Gearboxes for the Proxima series are manufactured right at the ZETOR TRACTORS a.s. manufacturing facility. Making them in-house enables significant control over quality, design and a considerable variability in the available options. The use of highquality materials ensures great endurance and a long service life.
- In-house production - control and enforcement of high quality standards.
- Outer lifting cylinders only - no inner cylinder.
- Good lifting force curve.
- Good serviceability.
- Forks on arm ends - no overhung pin.
- Lowering control with hydraulic lock function.
- Sensitive lowering of implements and safe transport.
- Auxiliary distributor integrated right on the hydraulic top cover.
- Parts without kick-out have a mechanical slide valve lock in end working positions.
- Bowden cable controllers with mechanical lock of the “n” position using a moving sleeve.
- External three-point hitch control with fine arm advancement - increased comfort when mounting implements.
Specification
- Maximum lifting force 42 kN.
- Hydraulic quick couplers:
- 4 (P+ and PW), 3 or 2 or 1 sections
- 1 section with kick-out, 3 sections with return valve
- Mechanical lock in the neutral position of the distributor (sections without the kick-out).
- Three-point hitch controlled flow rate.
- Infinite external control of lower link arms.
- Suction filter at the hydraulic pump intake.
- Top link sensing (draft control).
- A ll hydraulic controls are external (including hydraulic distributor).
- The Bosch electro-hydraulic system is fitted with the HitchTronic function, a unique system to automatically control the rear three-point hitch. When using this system, there is no need to set up different types of regulation or combinations. Only the implement working depth is set. When the implement attached to the rear three-point hitch reaches the set depth, the control system measures soil resistance, and this value is used as the initial value for the automatic hitch control.
- To improve comfort when working with implements, PROXIMA tractors are equipped with up to four hydraulic quick couplers, electro-hydraulic control and the HitchTronic system.
Cab
- Comfort and room
- Cabs have been designed to be convenient, comfortable and safe. They feature plenty of space around the driver and optimum allround visibility. The operator has an excellent view and control over the implements being used. This also includes an unobstructed view of the front loader through the roof hatch.
- Control is simple, well-arranged and very intuitive. All controls are always at hand.
(THIS MODEL WAS PREVIOUSLY CALLED THE PROXIMA PLUS RANGE)
